Passenger stairs - rent TEMG TG-2244

Refurbished

-

Capacity: min. platform height 2,20 m; max. platform height 4,40 m

-

Sale

-

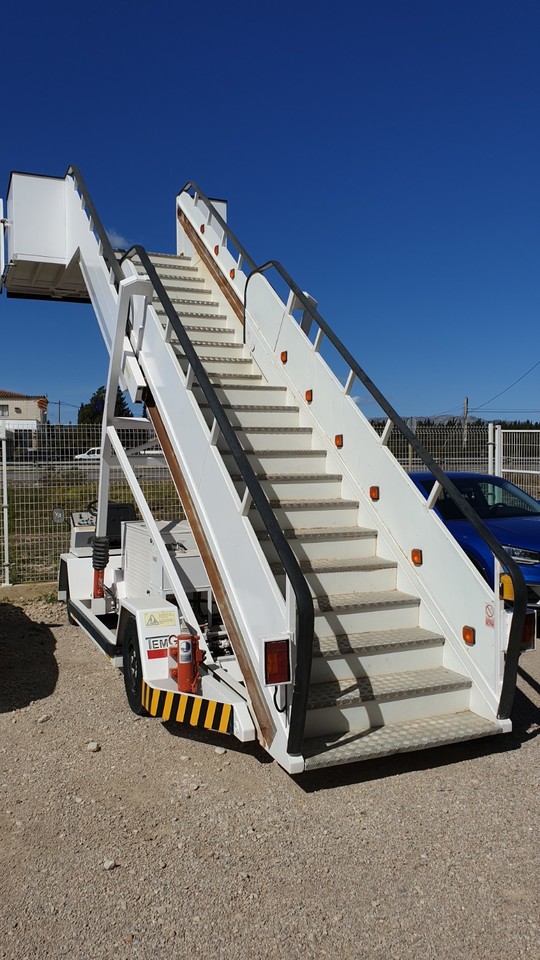

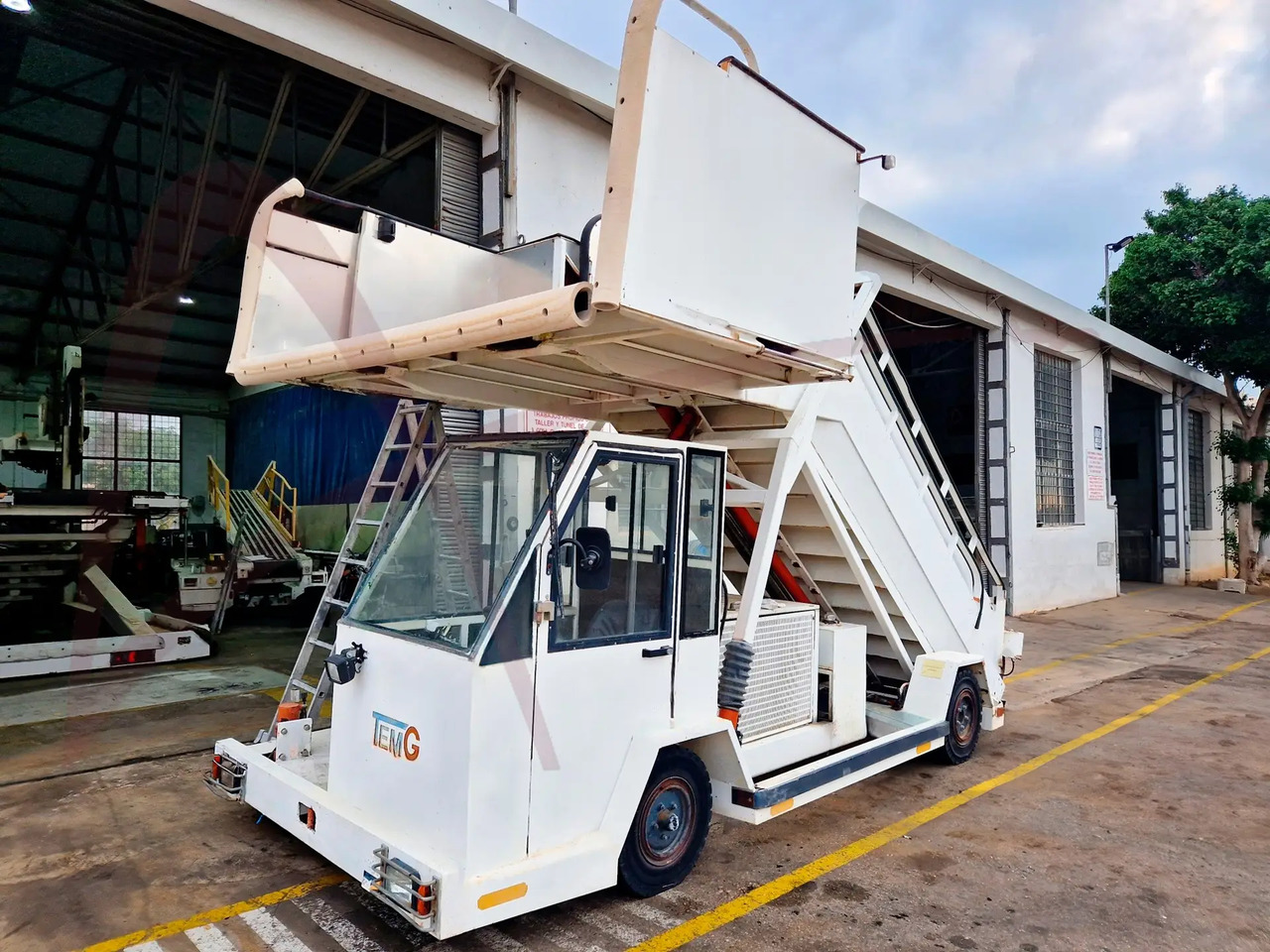

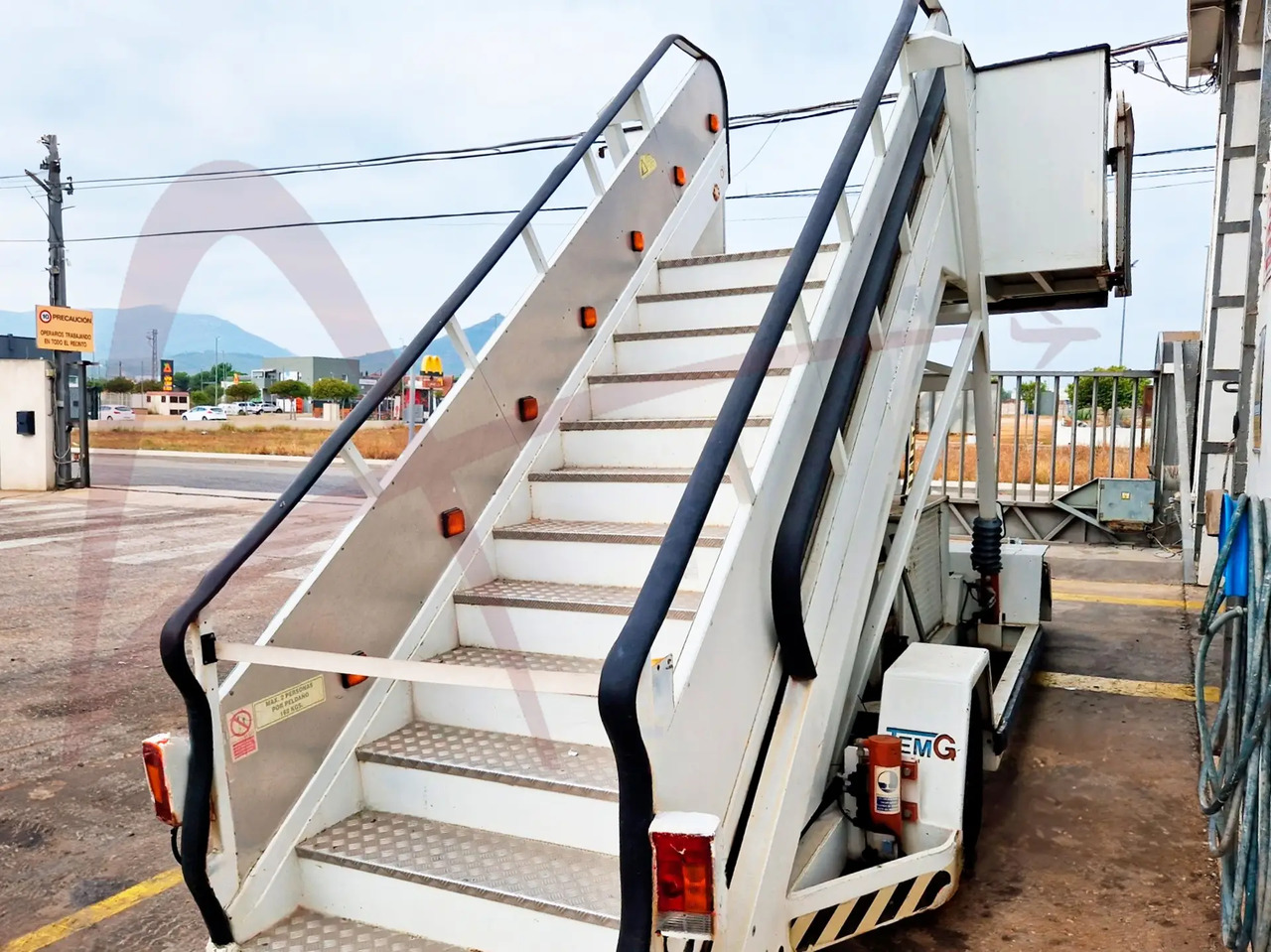

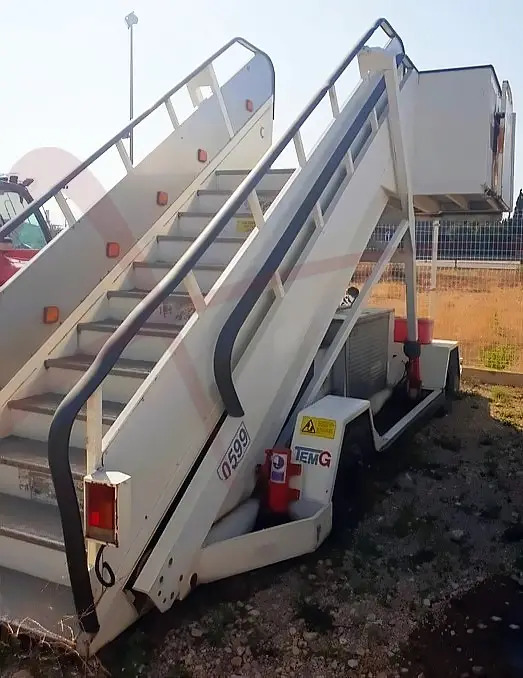

Self-propelled stair for medium-body aircraft

The self-propelled ladder TEMG TG2244 has been specially designed to carry out the loading/offloading of aircraft passengers; the vehicle’s threshold in the loading/offloading doors is a height above ground of between 2.20 m (86.6”) and 4.40 m (173.2”).

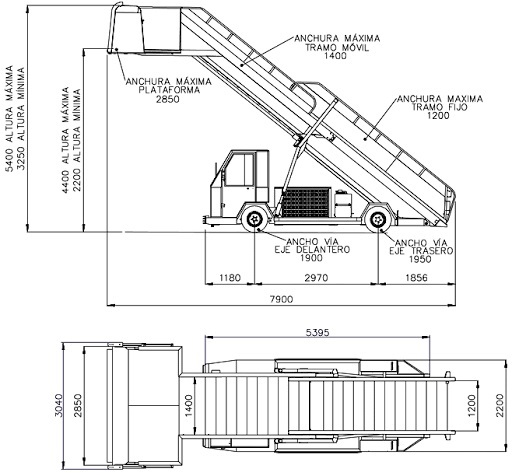

The ladder is a compact self-propelled vehicle comprising a frame with two flights of steps, one fixed and the other mobile, which slides telescopically over the fixed flight propelled by a hydraulic cylinder.In the upper part of the mobile flight there is a platform with tip-up front to adapt it to the aircraft’s profile on the loading/offloading doors lower threshold.On each side of the platform there is an ear which is automatically adjusted to fit over the sides of the aircraft’s door.

The loading/offl oading platform can be positioned at a height of between 2.20 m (86.6”) in its lowest position and 4.40 m (173.2”) in its highest est position.

The loading/offl oading platform and the flight of steps are protected by railings.
